What are the different types of pipe fittings and their uses?

Mar. 31, 2023

Pipe fittings are essential components in plumbing systems that allow pipes to connect, change direction, or control the flow of fluids. These fittings come in different shapes, sizes, and materials, and their selection depends on the specific needs of the plumbing application. In this article, we will discuss the different types of pipe fittings and their uses.

Coupling Fittings:

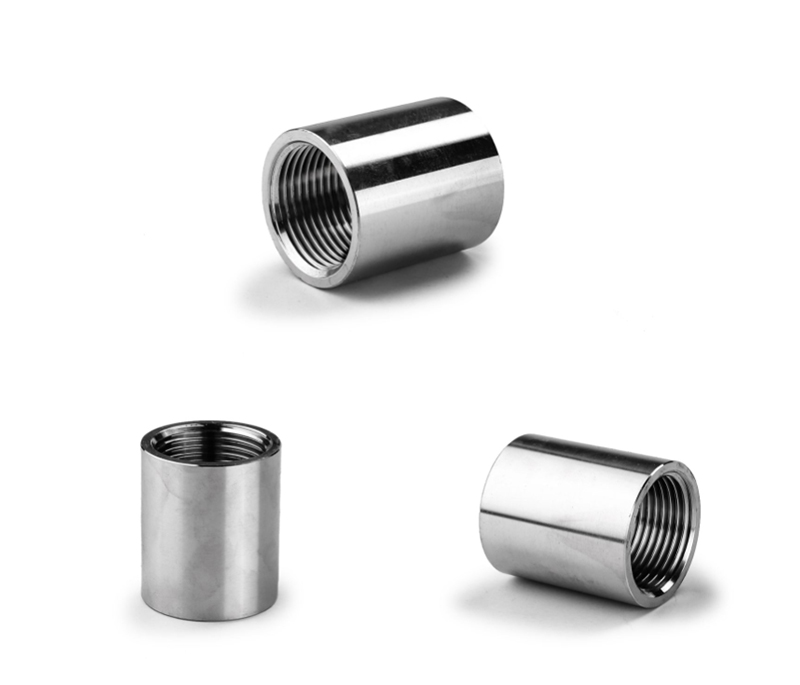

Coupling fittings are used to connect two pipes of the same size and material. They are designed with a cylindrical shape and can be threaded or slip-on. The threaded coupling has internal threads that match the external threads of the pipes, while the slip-on coupling has a smooth inner surface that fits over the pipes. Coupling fittings are commonly used in residential and commercial plumbing applications to extend or repair a pipeline.

Elbow Fittings:

Elbow fittings, as the name suggests, are used to change the direction of the pipe. They are available in different angles, such as 45 degrees, 90 degrees, and 180 degrees, to suit different plumbing needs. The most common elbow fitting is the 90-degree elbow, which is used to make a right-angle turn in a pipeline. Elbow fittings can be made of different materials, such as PVC, copper, brass, or stainless steel.

Tee Fittings:

Tee fittings are used to connect three pipes at 90-degree angles, forming a T-shape. They are commonly used in plumbing systems that require a branch line or a split in the pipeline. Tee fittings are available in different configurations, such as reducing tees, which have different-sized openings, and wye tees, which have angled openings.

Cross Fittings:

Cross fittings are similar to tee fittings, but they have four openings instead of three, forming a cross shape. They are used in plumbing systems that require multiple branch lines or connections. Cross fittings are available in different materials, such as brass, copper, and PVC.

Reducer Fittings:

Reducer fittings are used to connect pipes of different sizes. They have two openings of different sizes, allowing for a smooth transition between pipes. Reducer fittings can be concentric, where the openings are aligned, or eccentric, where the openings are offset.

Union Fittings:

Union fittings are used to connect pipes that need to be disconnected frequently, such as in maintenance or repair tasks. They have three parts: two identical nuts that screw onto the pipe ends and a middle piece that connects the nuts. Union fittings are commonly used in industrial applications, such as oil and gas pipelines.

In conclusion, pipe fittings are crucial components in plumbing systems that allow for the proper flow and control of fluids. The selection of fittings depends on the specific needs of the plumbing application, such as the size, material, and direction of the pipes. The types of fittings discussed in this article are just a few examples of the many options available in the market. Consult with a professional plumber or supplier to select the appropriate fittings for your plumbing needs.
